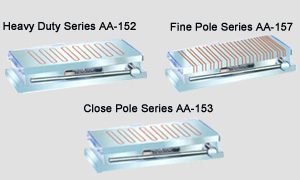

"Crystal" Brand Magnetic Chuck is the most widely accepted Permanet Magnetic Chuck, in Machine Tool Industry. Our design offers maximum holding power, ease of installation and operation. Rectangular Magnetic Chucks are manufactured in heavy duty types. Heavy Duty Chuck are suitable for all types of Surface Grinding operations. Heavy Duty in Close Pole Chuck are for holding thin and small jobs on grinding as well as thick wide jobs for milling. The Rectangular Chucks are also supplied in multiple units assembly of end form to make a chuck of unlimited length, having a regular poles spacing throughout the length.



Specifications -Permanent Magnetic Chucks (Series AA - 157) (Fine Pole)

Cat No.	Size in mm	Magnetic Pole Gap in mm
AA-15711	150x100x60	16
AA-15712	175x125x60	16
AA-15713	200x100x60	16
AA-15714	200x150x60	16
AA-15715	250x150x60	19
AA-15716	300x150x60	19
AA-15717	300x200x65	19
AA-15718	350x150x65	19
AA-15719	400x150x65	19
AA-15720	450x150x65	19
AA-15721	450x200x70	19
AA-15722	500x200x70	19
AA-15722	600x200x70	19

Specifications - Permanent Magnetic Chucks (Series AA - 153) (Close Pole)

Cat No.	Size in mm	Magnetic Pole Gap in mm
AA-15301	250 x 150 x 65	14
AA-15302	300 x 150 x 65	14
AA-15303	300 x 200 x 65	14
AA-15304	350 x 150 x 65	14
AA-15305	400 x 150 x 65	14
AA-15306	450 x 150 x 70	14
AA-15307	450 x 200 x 70	14
AA-15308	500 x 200 x 70	14
AA-15309	600 x 200 x 70	14
AA-15310	450 x 250 x 70	14
AA-15311	450 x 300 x 70	14
AA-15312	600 x 250 x 70	14
AA-15313	600 x 300 x 70	14
AA-15314	750 x 250 x 70	14
